PRODUCT DETAILS

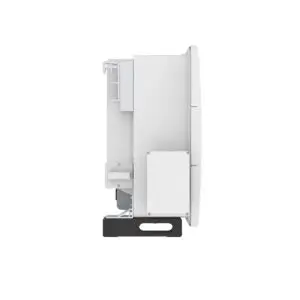

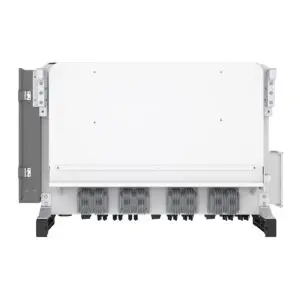

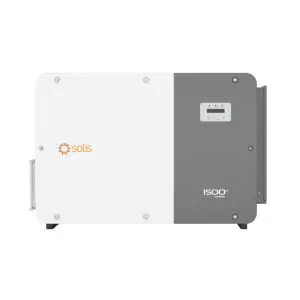

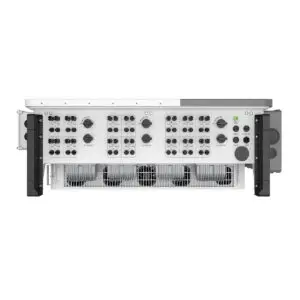

Solis-255K EHV-5G-US-PLUS 255kW-PLUS 3ph 1500Vdc; 800Vac; 12 MPPT Yconn w/AFCI MC4 LCD
125-255kW three-phase utility-scale 1500 Vdc PV string inverters have 9 MPPT (125K) or 12 independent MPPTs (185 & 255K) with high-rated dc inputs that support “Y” type connection in DC side, up to 30A per DC input . Maximum string input current 15A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent PV string monitoring reduces fault location time.
Product Features
- > 1.5 DC/AC ratio
- UL 1741 SA and SB
- Type 4X, C5 Anti-Corrosion Level
- DC side supports “Y” connector
- Reserve DC energy storage access
- High power tracking density 75MPPT/MW
- Compatible with 500W+ bifacial modules
- Support aluminium wire to reduce cost
- Fuse free design, safe and maintenance free
- Power line communication (PLC) (optional)
- AFCI protection, proactively reduces fire risk
- Intelligent string monitoring, smart I-V curve scan
- 9/12/14 MPPTs, max. efficiency 99.0% (CEC efficiency 98.3%)
- High quality components from globally recognized suppliers
- Integrated nighttime PID recovery for optimal module performance
- Remote firmware upgrade with simple operation (Requires the user to use Solis monitoring)
