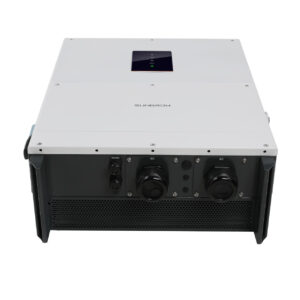

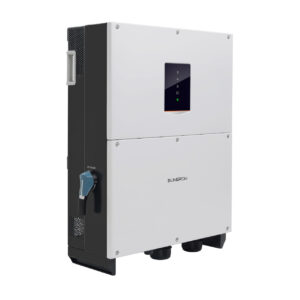

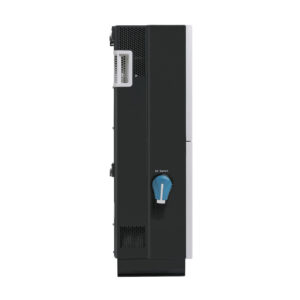

PRODUCT DESCRIPTION
HIGH YIELD
- Patented five-level, neutral-free topology,
- max. efficiency 98.9 %, CEC efficiency 98.5 %
- Full power operation without derating at 50 °C
- Patented anti-PID function
EASY O&M
- Virtual string-central solution, for optimized O&M
- Compact design and light weight for easy installation
SAVED INVESTMENT
- DC 1500V, AC 600V, low infrastructure cost, 600Vac standard AC components!
- 1 to 5MW power block design for lower AC transformer and labor cost
- Max. DC/AC ratio up to 1.5
- Integrated DC disconnect for no additional DC switch expenses in string-central applications
- Integrated AC disconnect switch
GRID SUPPORT
- Compliance with both CSA and UL safety, EMC and grid support regulations
- Low/High voltage ride through(L/HVRT)
- Active & reactive power control and power ramp rate control
SPECS |
|
|---|---|
| Power Output | 125kW |
| AC Voltage | 600V |
| DC Voltage | 1500V |
| Peak Efficiency | 98.9% |
| CEC Efficiency | 98.5% |
| Maximum DC Input Voltage | 1500V |
| Maximum Short Circuit DC input Current | 240A |
| Maximum Operation DC Input Current | 148A |
| Number of MPPT’s | 1 |
| MPP operating voltage window | 860-1450V |
| Connectivity | RS485 |
| Display | LED, Bluetooth + APP |
| Cooling Method | Smart forced air cooling |
