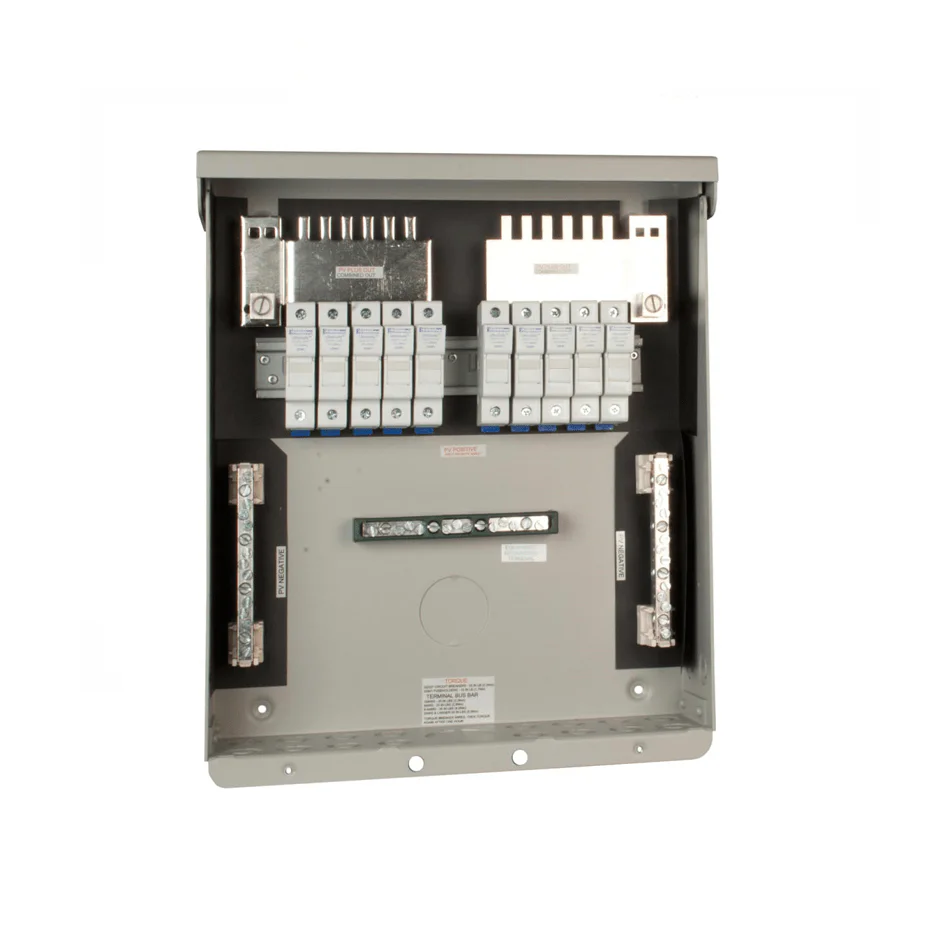

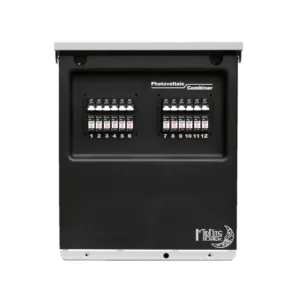

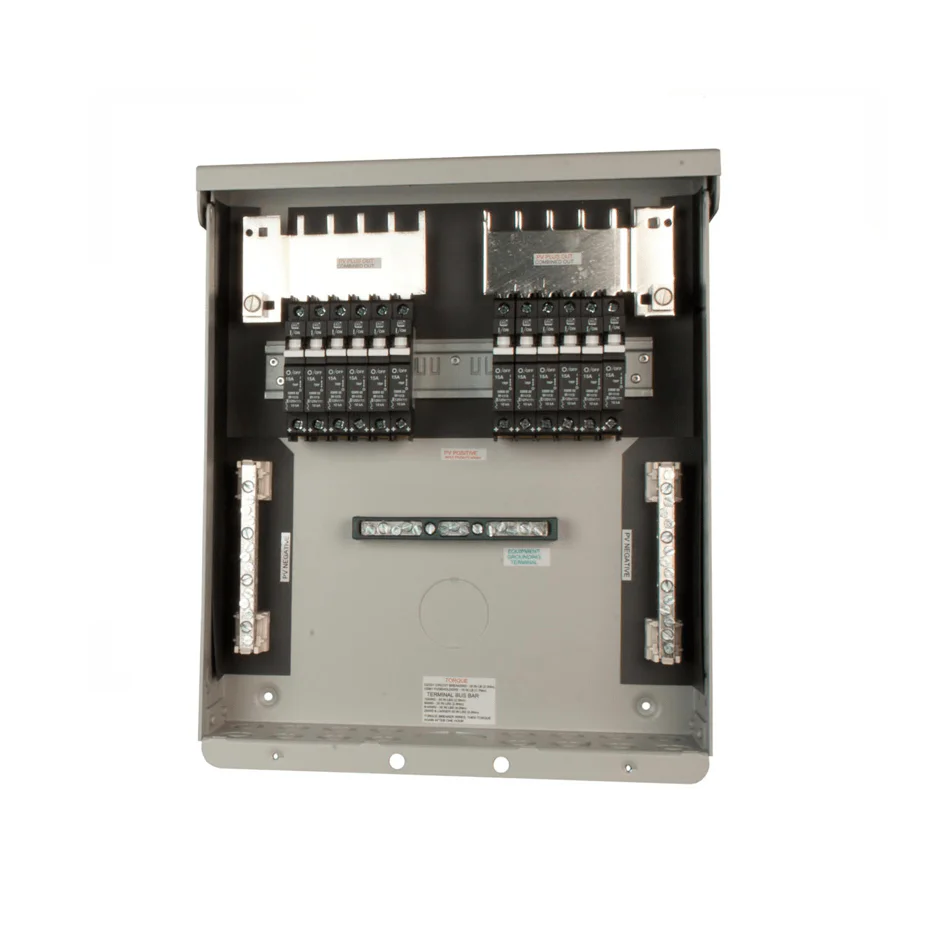

Midnite Solar MNPV12 Combiner Box

Description

The MNPV12 features:

• All aluminum powder coated housing. Won’t rust or degrade due to sun exposure.
• Flip up cover that can stay in the open position during installation
• PV Negative bus bar with openings for #14-6 and #1/0-14)
• Chassis ground bus bar with #14-6 and #1/0-14 wire openings
• Standard din rail for mounting breakers or fuse holders
• Tin plated copper bus bars to combine breaker and fuse holder outputs
• Dead front cover snaps into place after wiring is complete for safety
• Knock outs for PV in and PV out on bottom and sides
• PV IN knockouts are 7/8 concentric to allow for bulkhead mount MC connectors or strain reliefs
• Top surface is available to bring conduit in from directly above the enclosure
