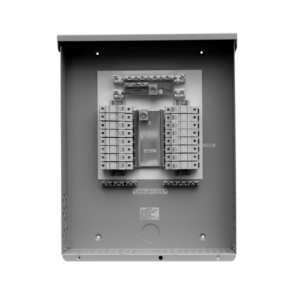

Midnite Solar MNPV16 Combiner Box

$540.00

Main Features:

Number of Strings: 16

Voltage Rating: 150VDC

SKU 109-MN-2019 Categories COMBINERS, ELECTRICAL Brand: Midnite Solar

Fast Shipping

Get shipping quotes quickly.

Warranty Exchange

We handle the warranty for you.

10 Day Return Policy

In case you change your mind.

PRODUCT STOCK DIFFERS FROM LOCATION TO LOCATION PLEASE CONFIRM STOCK STATUS FOR SHIPPING OR PICKUP

Description

The MNPV16 features:

All aluminum powder coated housing. Won’t rust or degrade due to sun exposure
Flip up cover that can stay in the open position during installation
PV Negative bus bar with openings for #14-6 and #1/0-14)
Chassis ground bus bar with #14-6 and #1/0-14 wire openings
Standard din rail for mounting breakers or fuse holders
Tin plated copper bus bars to combine breaker and fuse holder outputs
Dead front cover snaps into place after wiring is complete for safety
Knock outs for PV in and PV out on bottom and sides
PV IN knockouts are 7/8 concentric to allow for bulkhead mount MC connectors or strain reliefs
Top surface is available to bring conduit in from directly above the enclosure

Please Note:These combiner boxes do not come with breakers

Weight	10 lbs
Dimensions	16 × 14 × 5 in
