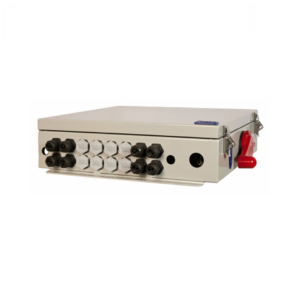

Midnite Solar MNPV16HV-DLTL 4X DLTL Disconnect Combiner

Description

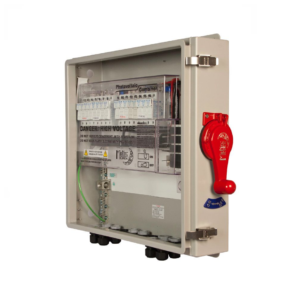

The MNPV16HV-DLTL 4X’s red handle is LOCKABLE IN THE OFF POSITION!

8 strings into the combiner with 2 separate 60 amp strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.

The difference between the regular Disco combiner and the DLTL version is that the MNPV16HV-Disco-4X is made for a single 16 string inverter, 2 8 sting inverters or one 8 string transformerless where as the DLTL is set up for 8 strings in and 2 strings out for Dual MPPT on transformerless

• Rapid Shutdown System  compliant
• Birdhouse  compatible
• Type 4X aluminum enclosure (No Rust)
• Number of Fuse Holders (MNTS) included – 16
• Fuses  included
• Current Rating – 120A
• Max. Output Wire Size – 2/0
• Output Circuits – 2
• 90 degree C connections
• 1/2 strain reliefs (MNSR-1000) included
• Meets 2014 NEC 690.12
• See through dead front and color coded bus bar guards
• #6 AWG internal wiring
• Warranty  – 5 yrs.
• Listed by ETL for US & Canada
• Made in the USA

Hardware Included:

• Eight – 1/2″ strain reliefs (MNSR-1000)
• Twenty – 1/2″ LOCKNUTS
• Fifteen – HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
• One  BLUE WRENCH  (MNWRENCH)
