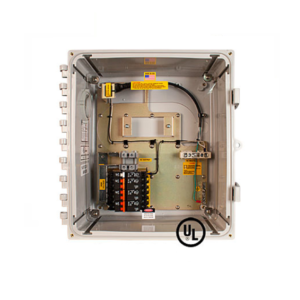

Midnite Solar MNACENPR-3P20 Combiner AC Micro Inverter

SKU: 109-MN-2230 PRODUCT STOCK DIFFERS FROM LOCATION TO LOCATION PLEASE CONFIRM STOCK STATUS FOR SHIPPING OR PICKUP

$1,477.82

Main Features:

Voltage Rating: No Data

Current Rating: No Data

or
Rating Type 3R (outdoor installation)
Enclosure type Polycarbonate
Deadfront YES
Combiner busbar rating 60A/240V AC
Field Wiring Terminal AC hot in, AC hot out, neutral & ground
Combining Breakers Two or three 2 pole 20A/240V AC din rail mounted (UL 489A)
Breaker slots 3
Outlets Single 5 amp receptacle for Ethernet over power line adapter
UL Listed YES (UL 1741)
Size 15.38″ x 14.56″ x 7.63″
Box Size 18″ x 17″ x 12″
Weight 13 lbs.



Weight 13 lbs
Dimensions 18 × 17 × 12 in
